Jasion Patrol 52
Jasion Patrol 52 Electric Dirt Bike
Product Description
The Jasion Patrol 52 is a high-performance electric dirt bike built for riders who want powerful acceleration, strong torque, and a rugged full-suspension riding experience. Equipped with a 4000W brushless rear hub motor and 145 Nm of torque, the Patrol 52 delivers quick response and strong climbing ability for off-road trails, rough paths, and demanding terrain.
Its 52V 30Ah removable lithium battery provides up to 50 miles of range, giving riders more freedom for longer adventures. The full suspension system, hydraulic brakes, extra-thick dirt bike tires, and twist throttle control make the Patrol 52 a capable and confidence-inspiring electric ride.
The bike also features an LCD display with NFC unlock, integrated lighting, and a strong frame designed to support riders up to 330 lbs. With its dirt-bike-inspired design and powerful electric system, the Patrol 52 is made for riders looking for performance, stability, and adventure in one package.
Please check your local regulations before riding, as speed and road-use rules may vary by location.
Key Features
- 4000W brushless rear hub motor
- 52V 30Ah removable battery
- Up to 40 mph top speed
- Up to 50 miles range
- 145 Nm torque
- Full suspension system
- Hydraulic brakes
- Twist throttle control

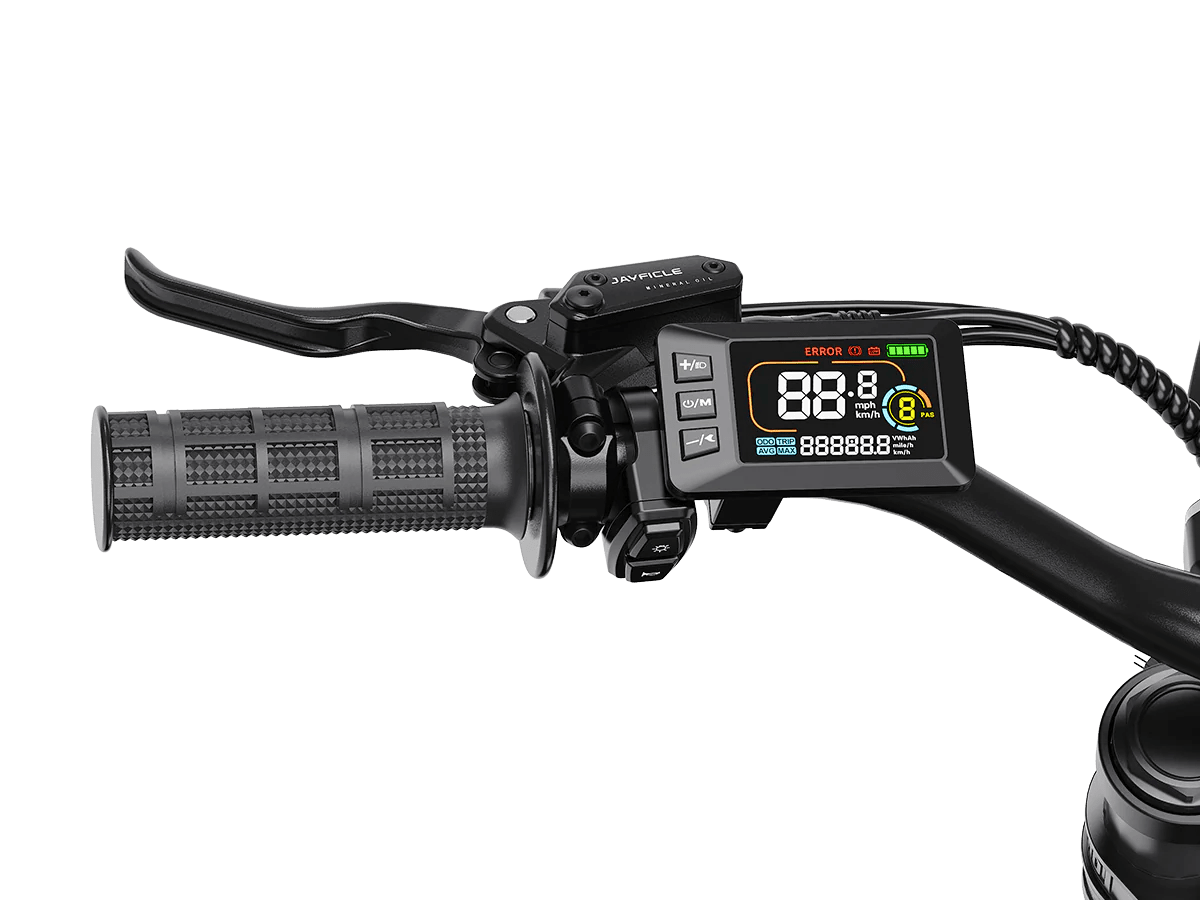

- LCD display with NFC unlock

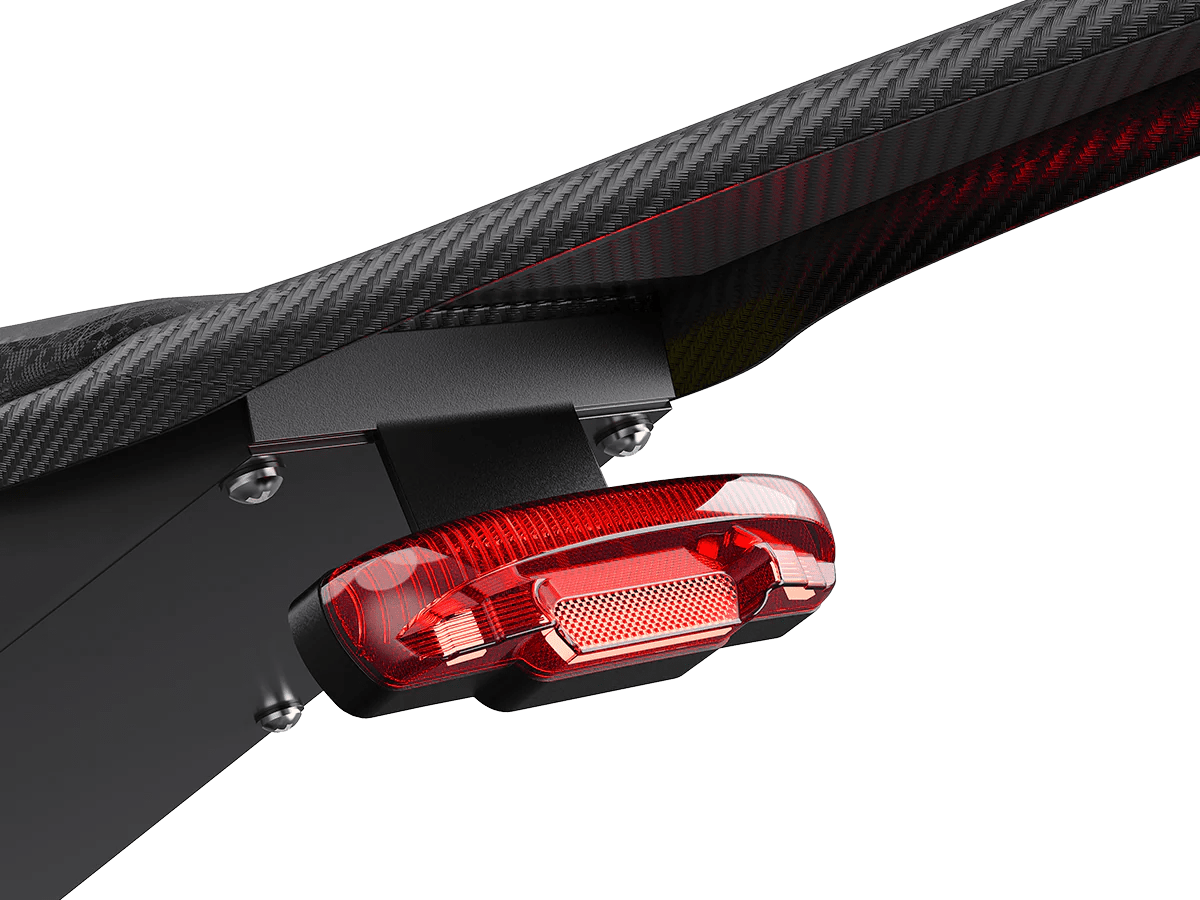

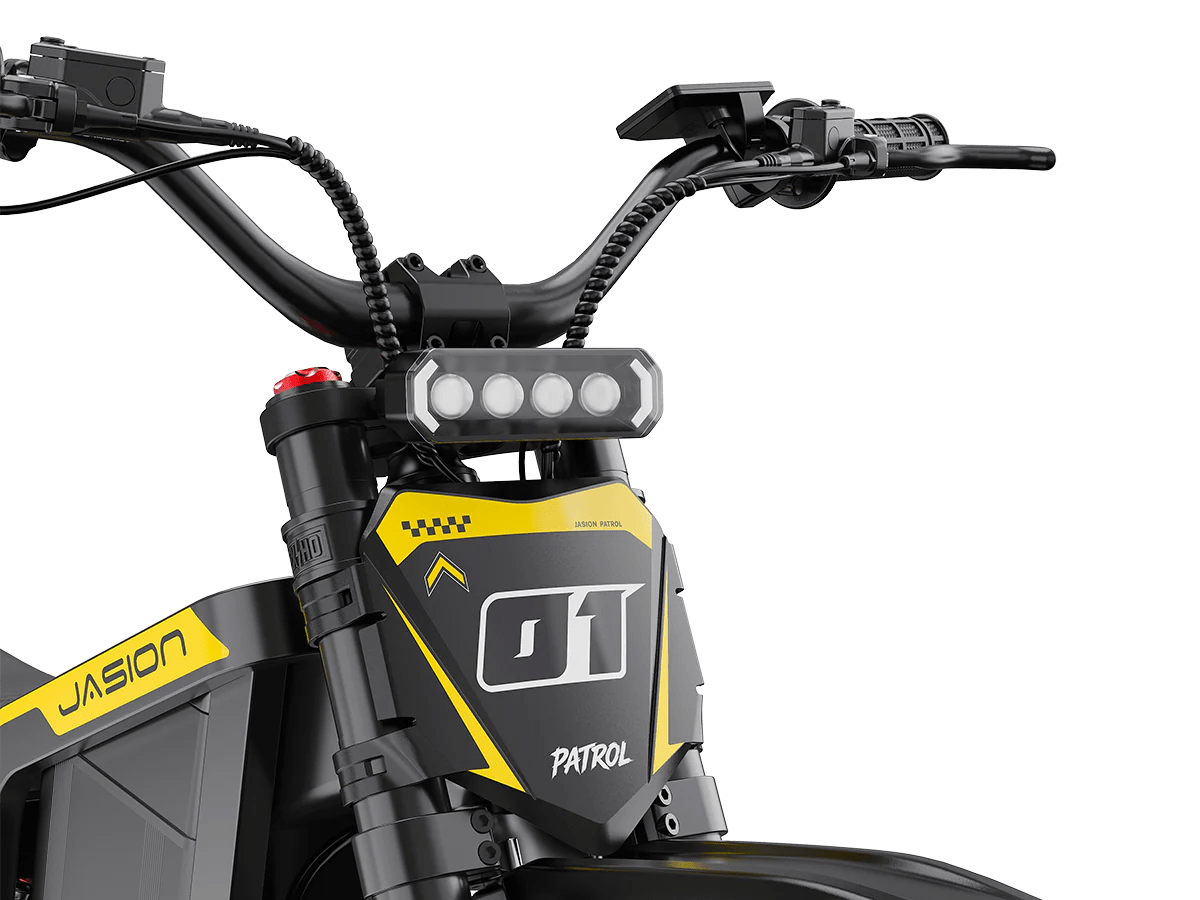

- Front light, turn signals, and brake light
- Extra-thick dirt bike tires
- 330 lbs max payload
Specifications
| Specification | Details |
|---|---|
| Model | Jasion Patrol 52 |
| Color | Black Knight |
| Motor | 4000W Brushless Rear Hub Motor |
| Battery | 52V 30Ah |
| Battery Capacity | 1560Wh |
| Controller | 52V 70A |
| Top Speed | 40 mph |
| Max Range | Up to 50 miles |
| Torque | 145 Nm |
| Charging Time | 7–8 hours |
| Fast Charging | 15%–80% in around 3.5 hours |
| Throttle | Twist Throttle |
| Riding Mode | Throttle Only |
| Throttle Gear | 0–5 Levels, No Pedal Assist |
| Sensor | Cadence Sensor |
| Suspension | Full Suspension |
| Front Suspension | 150 mm hydraulic front fork with lockout |
| Rear Suspension | Rear hydraulic shock |
| Brakes | Hydraulic Brakes |
| Display | LCD with NFC Unlock |
| Front Tire | 70/100-19 Extra-thick dirt bike tire |
| Rear Tire | 70/100-17 Extra-thick dirt bike tire |
| Lights | Headlight, turn signals, and brake light |
| Rider Height | 5'7" – 6'7" |
| Bike Weight | 115 lbs |
| Max Payload | 330 lbs |
| Folding | No |
| Charger | US Standard 2.0A |
Geometry
| Measurement | Size |
| Total Length | 72.4 in |
| Handlebar Height | 43 in |
| Wheelbase | 47.6 in |
| Seat Height | 32 in |
| Seat Length | 21 in |
| Front Wheel Diameter | 70/100-19 in |
| Bike Height | 43.3 in |
| Ground Clearance | 5 in |
What’s in the Box
| Item | Quantity |
| Patrol 52 Bike | 1 |
| Fender | 2 |
| Rear Rack | 1 |
| Charger | 1 |
| Toolkit | 1 |
| Pedals | 2 |
| Kickstand | 1 |
| Manual QR Code Card | 1 |
| Sticker | 1 |
| Jasion Bike Cap | 1 |
| Front Light | 1 |
| Front Board | 1 |
| Front Wheel | 1 |
| Front Disc Brake Caliper Mounting Bolts | 1 |
